Parent class for elements in the map. More...

#include <Map.h>

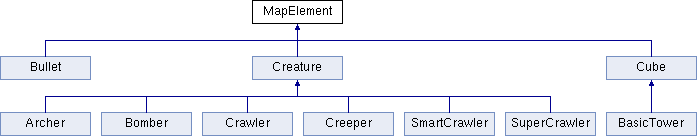

Inheritance diagram for MapElement:

Public Member Functions
bool	atDiscoBall (int x, int y, int z, int range)
	Helper for calling atDiscoBall(IntVec3 v, int range) More...

bool	atDiscoBall (IntVec3 v, int range)

bool	attack (int x, int y, int z, int damage)
	Attack the position on a grid Does attack damage if a Creature and defend Damage if a Cube. More...

bool	attack (IntVec3 v, int damage)
	Helper for calling attack(int x,int y,int z,int damage) More...

bool	attack (IntVec3 old, int x, int y, int z, int damage)
	Helper for calling attack(int x,int y,int z,int damage) More...

bool	attackDiscoBall (int damage)
	Attack the Disco Ball!!!! More...

bool	boundaryCheck (int x, int y, int z)
	Check if this position is in the Map grid in order to avoid bad access. More...

virtual AABox	getAABox ()
	Get the AABox corresponding to the creature. More...

virtual int	getBounty ()

virtual int	getOccupancy ()

virtual int	getType ()

bool	hasBox (int x, int y, int z)
	Check if there is a box at the specified position. More...

bool	hasBox (IntVec3 v)
	Helper for calling hasBox(int x, int y, int z);. More...

bool	inMap ()
	Check if the MapElement is close to the Disco Ball. More...

bool	isValidMove (int x, int y, int z)
	Check if can move to the position Can move if the occupancy of this MapElement sums the gridOccupancy of the destination grid is less than or equal to 100. More...

bool	isValidMove (IntVec3 v)
	Helper for calling isValidMove(int x, int y, int z);. More...

bool	isValidMove (IntVec3 old, int x, int y, int z)
	Helper for calling isValidMove(int x, int y, int z);. More...

	MapElement (shared_ptr< VisibleEntity > e, int x, int y, int z, Map *m)
	Constructor. More...

virtual bool	move ()
	Take a move This is the method that actually determines the behavior of the creature. More...

virtual void	onDeath ()
	Update m_map when it dies. More...

virtual void	onSpawn ()
	Update m_map when it spawns. More...

bool	operator< (const MapElement &other) const
	Overloaded less than for sorting. More...

float	randFloat ()
	Generates pseudo-random float between 0 and 1. More...

virtual void	run ()
	Called every frame to update the MapElement A MapElement takes a certain number of turns(frames) to finish a move. More...

virtual void	takeDamage ()
	Takes damage from the grid for both the oldPos and newPos. More...

void	updateHP ()
	Called every frame to update the HP of the MapElement. More...

Public Attributes
AABox	aaBox
	Used for raycasting. More...

bool	change
	True if anything about it has changed in the past frame, vice versa. More...

Vector3	displacement
	Displacement per frame. More...

shared_ptr< VisibleEntity >	entity
	Pointer to the VisibleEntity in the actual Scene. More...

Map *	m_map
	Pointer to the map. More...

int	maxHP
	Max HP of creature. More...

int	newHP
	HP at this frame. More...

Vector3	newOffset
	Offset used for random placement within a Map grid. More...

IntVec3	newPos
	Destination of this after finishing the current move. More...

int	oldHP
	HP before this frame. More...

Vector3	oldOffset
	Offset used for random placement within a Map grid. More...

IntVec3	oldPos
	Previous position of this before the current move. More...

int	suicide = false
	If true, no bounty is given upon death. More...

int	turnsLeft
	Number of frames left before the current move is finished. More...

Detailed Description

Parent class for elements in the map.

Only child classes should be used A MapElement is the basic unit in Map. It contains information about is location, HP and etc, as well as methods that provides basic attack and move methods. In addition to that, it also contains information about its graphical representation.

Extended by Creature and Cube

Constructor & Destructor Documentation

MapElement::MapElement	(	shared_ptr< VisibleEntity >	e,
		int	x,
		int	y,
		int	z,
		Map *	m
	)

Constructor.

Parameters

e	entity
x,y,z	used for initializating oldPos and newPos
m	m_map

Member Function Documentation

bool MapElement::atDiscoBall	(	int	x,
		int	y,
		int	z,
		int	range
	)

Helper for calling atDiscoBall(IntVec3 v, int range)

Parameters

x,y,z	position of MapElement
range	range of attack, in mahattan distance

bool MapElement::atDiscoBall	(	IntVec3	v,
		int	range
	)

bool MapElement::attack	(	int	x,
		int	y,
		int	z,
		int	damage
	)

Attack the position on a grid Does attack damage if a Creature and defend Damage if a Cube.

The damage is distributed to corresponding MapElement in the grid with weight base on corresponding occupancy.

Parameters

x,y,z	grid to attack
damage	Damage dealt

See Map::attackDamage and Map::defendDamage for more info.

bool MapElement::attack	(	IntVec3	v,
		int	damage
	)

Helper for calling attack(int x,int y,int z,int damage)

Parameters

v	IntVec3 that contains x,y,z
damage	Damage dealt

bool MapElement::attack	(	IntVec3	old,
		int	x,
		int	y,
		int	z,
		int	damage
	)

Helper for calling attack(int x,int y,int z,int damage)

Parameters

old	IntVec3 that contains the coordinate
x,y,z	offset to IntVec3 old
damage	Damage dealt

bool MapElement::attackDiscoBall ( int damage )

Attack the Disco Ball!!!!

Parameters

damage Damage to Disco Ball

bool MapElement::boundaryCheck	(	int	x,
		int	y,
		int	z
	)

Check if this position is in the Map grid in order to avoid bad access.

Parameters

x,y,z point to be checked

AABox MapElement::getAABox ( )

virtual

Get the AABox corresponding to the creature.

Has to be virtual because size vary

int MapElement::getBounty ( )

virtual

Returns: the bounty of it when killed, applicable to only Creature

Reimplemented in SuperCrawler, Bomber, Archer, SmartCrawler, Creeper, Crawler, and Creature.

int MapElement::getOccupancy ( )

virtual

Returns: the occupancy of it

Reimplemented in SuperCrawler, Bomber, Archer, SmartCrawler, Creeper, Crawler, Creature, BasicTower, and Cube.

int MapElement::getType ( )

virtual

Returns: the type of it

Reimplemented in SuperCrawler, Bomber, Archer, SmartCrawler, Creeper, Crawler, Creature, BasicTower, and Cube.

bool MapElement::hasBox	(	int	x,
		int	y,
		int	z
	)

Check if there is a box at the specified position.

Parameters

x,y,z position to be checked

bool MapElement::hasBox ( IntVec3 v )

Helper for calling hasBox(int x, int y, int z);.

Parameters

v	IntVec3 of the position

bool MapElement::inMap ( )

Check if the MapElement is close to the Disco Ball.

Parameters

v	position of MapElement
range	range of attack, in mahattan distance

See Map::discoBallLoc for more infoCheck if the MapElement is inside the map. Used for visualizing the creatures approaching the playable map

bool MapElement::isValidMove	(	int	x,
		int	y,
		int	z
	)

Check if can move to the position Can move if the occupancy of this MapElement sums the gridOccupancy of the destination grid is less than or equal to 100.

Parameters

x,y,z position to be checked

bool MapElement::isValidMove ( IntVec3 v )

Helper for calling isValidMove(int x, int y, int z);.

Parameters

v	IntVec3 of the position

bool MapElement::isValidMove	(	IntVec3	old,
		int	x,
		int	y,
		int	z
	)

Helper for calling isValidMove(int x, int y, int z);.

Parameters

old	IntVec3 that contains the coordinate
x,y,z	offset to IntVec3 old

bool MapElement::move ( )

virtual

Take a move This is the method that actually determines the behavior of the creature.

Called by run() everytime when turnsLeft = 0;

Must update turnsLeft. Must be overridden in sub classesA

Reimplemented in SuperCrawler, Bomber, Archer, SmartCrawler, Creeper, Crawler, Creature, BasicTower, Cube, and Bullet.

void MapElement::onDeath ( )

virtual

Update m_map when it dies.

Reimplemented in SuperCrawler, Bomber, Archer, SmartCrawler, Creeper, Crawler, Creature, BasicTower, Cube, and Bullet.

void MapElement::onSpawn ( )

virtual

Update m_map when it spawns.

Reimplemented in SuperCrawler, Bomber, Archer, SmartCrawler, Creeper, Crawler, Creature, BasicTower, and Cube.

bool MapElement::operator< ( const MapElement & other ) const

Overloaded less than for sorting.

float MapElement::randFloat ( )

Generates pseudo-random float between 0 and 1.

void MapElement::run ( )

virtual

Called every frame to update the MapElement A MapElement takes a certain number of turns(frames) to finish a move.

Run is called to check if the current move has been finished. Everytime run() is called, turnsLeft is decremented by 1. If turnsLeft equals 0, move() is called to perform the next move

Reimplemented in Bullet.

void MapElement::takeDamage ( )

virtual

Takes damage from the grid for both the oldPos and newPos.

Takes attack damage if a Cube and defend damage if a Creature.

See Map::attackDamage and Map::defendDamage for more info.

Reimplemented in Bullet.

void MapElement::updateHP ( )

Called every frame to update the HP of the MapElement.

Member Data Documentation

AABox MapElement::aaBox

Used for raycasting.

bool MapElement::change

True if anything about it has changed in the past frame, vice versa.

Vector3 MapElement::displacement

Displacement per frame.

Calculated as the difference between newPos and oldPos(plus offset) divided by the number of turns need to finish a move

shared_ptr<VisibleEntity> MapElement::entity

Pointer to the VisibleEntity in the actual Scene.

Map* MapElement::m_map

Pointer to the map.

int MapElement::maxHP

Max HP of creature.

int MapElement::newHP

HP at this frame.

Vector3 MapElement::newOffset

Offset used for random placement within a Map grid.

Reflects the offset for newPos

IntVec3 MapElement::newPos

Destination of this after finishing the current move.

See move()

int MapElement::oldHP

HP before this frame.

Vector3 MapElement::oldOffset

Offset used for random placement within a Map grid.

Reflects the offset for oldPos

IntVec3 MapElement::oldPos

Previous position of this before the current move.

int MapElement::suicide = false

If true, no bounty is given upon death.

int MapElement::turnsLeft

Number of frames left before the current move is finished.

See move()

The documentation for this class was generated from the following files:
